5 Toh Guan Road East Warehouse Ramp – Up Space for Rent
5 Toh Guan Road East Location
5 Toh Guan Road East Amenities
5 Toh Guan Road East Keypoints
- High Floor Loading and Ceiling Heights: The warehouse offers a robust floor loading capacity of up to 25 kN/m² and ceiling heights reaching 12 meters, enabling efficient storage and handling of heavy goods.
- Spacious Floor Plates: With a total net lettable area of approximately 46,318 sqm, typical floor plates range from 7,800 sqm (1st to 5th storeys) to 5,700 sqm (6th storey), ideal for single-floor operations.
- Advanced Loading Bays: The facility includes over 80 loading and unloading bays, with dedicated staging areas to streamline delivery and dispatch processes.
- Green Design: Certified with BCA Green Mark Gold Plus, the building incorporates sustainable features, enhancing energy efficiency and environmental responsibility.
- Rooftop Parking and Ramp-Up Design: The ramp-up configuration allows direct vehicle access to every level, complemented by rooftop parking for added convenience.
- Proximity to Jurong Lake District: Its location near this emerging commercial hub offers businesses opportunities for collaboration and growth in a vibrant ecosystem.
The facility’s design caters to mid-sized distribution companies and third-party logistics (3PL) providers, with high power provisions supporting cold storage and last-mile delivery operations. Its blend of modern infrastructure and strategic location makes it a competitive choice for businesses looking to optimize their supply chain.
5 Toh Guan Road East Additional Information
• Blk 1 – 3-storey warehouse cum ancillary office space
• Blk 2 – 4-storey warehouse space
Floor Area
• Total NLA: Approx. 23,607 sqm
Typical Floor Plate
• Warehouse (Blk 1 and 2): Approx. 21,000 sqm
• Ancillary Office (Blk 1): Approx. 2,500 sqm
Parking Lots
• Car: Approx. 27
• Lorry: Approx. 12
Power Supply Allocation
• 300 amps per floor
Provisions
• 24-hour security surveillance
• Closed circuit TV system
Amenities
• Walking distance to canteen and IMM
Net Lettable Area in sqm: 23,587
Floor Loading
Block 1
Ancillary Office: 5.0 kN/sqm
Warehouse
– 1st storey: 25.0 kN/sqm
– 2nd storey: 20.0 kN/sqm
– 3rd storey: 15.0 kN/sqm
Block 2
– Warehouse: 15.0 kN/sqm
Ceiling Height
Floor to floor
Block 1 Ancillary Office
– 1st storey: 4.4 m
– 2nd storey: 3.0 m
– 3rd & 4th storey: 3.1 m
– 5th storey: 4.4 m
Block 1 Warehouse
– 1st storey: 6.3 m
– 2nd storey: 6.2 m
– 3rd storey: 6.0 m
Block 2 Warehouse
– 1st storey: 7.8 m
– 2nd storey: 7.6 m
– 3rd storey: 6.0 m
– 4th storey: 6.4 m
Lifts
Block 1
– Passenger lift: 1 x 750 kg (11 people)
– Cargo lifts: 3 x 6,000 kg
– Dimensions: 4.12 m (W) x 3.55 m (D) x 2.8m (H)
– Lift car door size: 4.0 m (W) x 2.8 m (H)
Block 2
– Passenger lift: 1 x 750 kg (11 people)
– Cargo lifts: 3 x 6,000kg
– Dimensions: 4.12 m (W) x 3.55 m (D) x 2.8 m (H)
– Lift car door size: 4.0m (W) x 2.8 m (H)

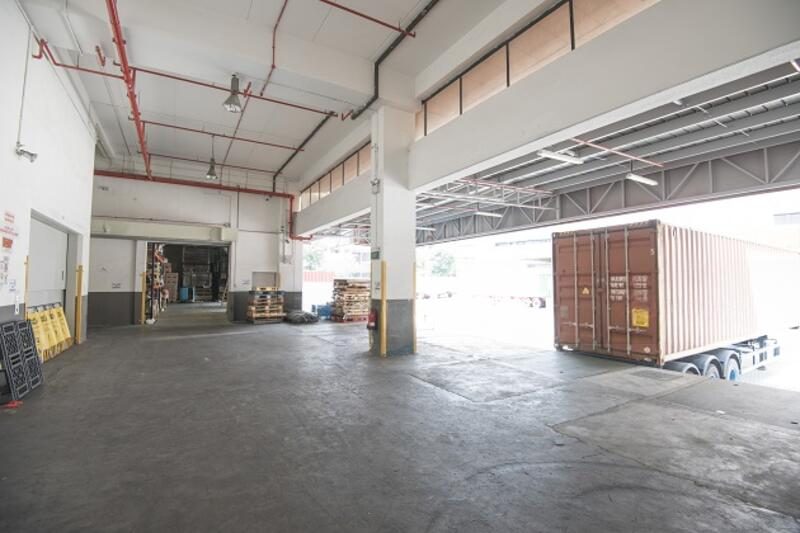

Loading Bay
Block 1: 12 loading/unloading bays
Block 2: 5 loading/unloading bays
5 Toh Guan Road East Price Range: $2.20psf
5 Toh Guan Road East Size Available:
All units: 40-footer ramp up access 12 m ceiling height, 25kN/sqm, minimum 100W per sqm
87,681sqft
88,108sqft
88,108sqft
88,108sqft
88,108sqft
63,513sqft
